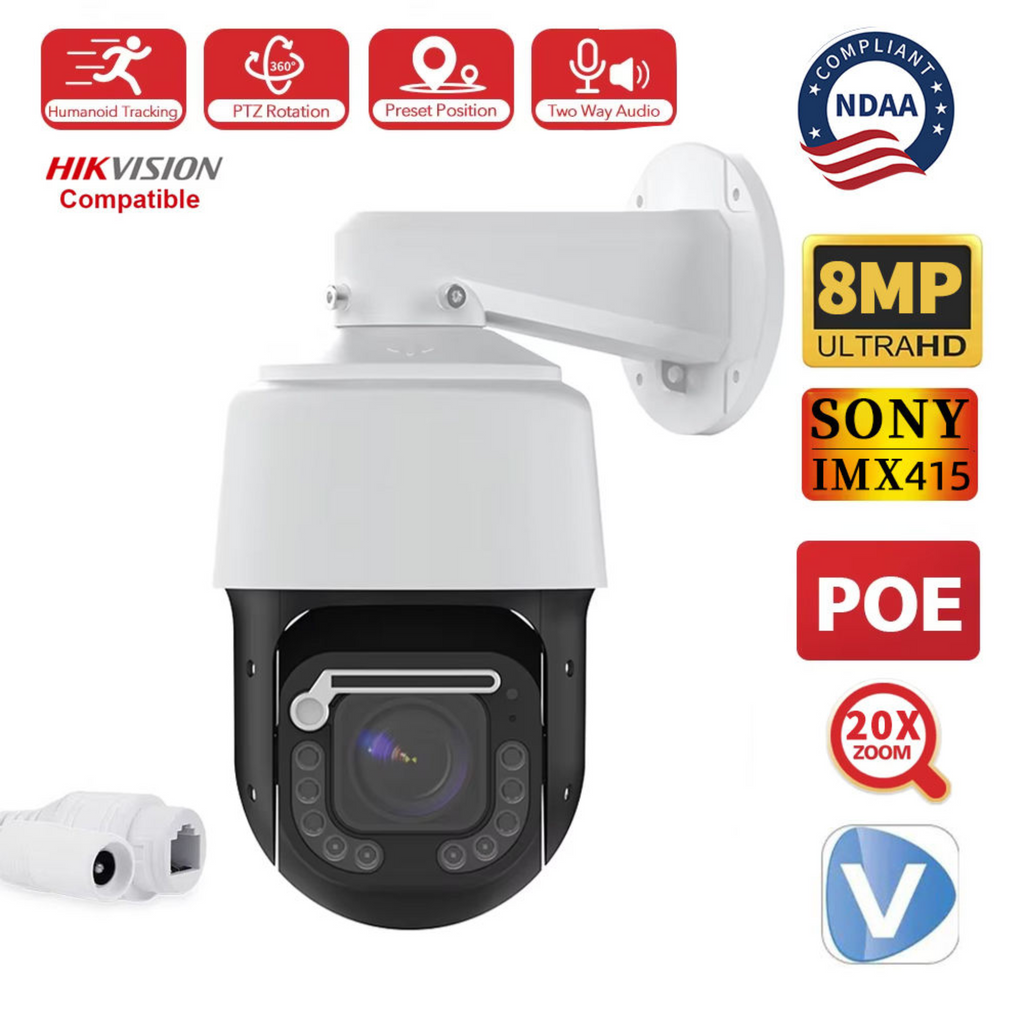

8MP 20X Optical Zoom High Speed Dome PTZ POE IP Camera Dual Light Outdoor With IMX415 Human AI Auto Tracking Wiper CCTV Camera
$175.00
Skip to product information
8MP 20X Optical Zoom High Speed Dome PTZ POE IP Camera Dual Light Outdoor With IMX415 Human AI Auto Tracking Wiper CCTV Camera
$175.00
pecification
|
Camera
|
|
|
Image Sensor:
|
SSC338+1/2.8"Sony IMX415
|
|
Signal System:
|
|
|
Min. Illumination:
|
Color: 0.05lux @(F1.6, AGC ON), 0 lux with IR
|
|
Shutter Time:
|
1/25 s to 1/10,000 s
|
|
Lens:
|
4.7~94 mm (20X Optical Zoom *3X DIGITAL)
|
|
Day&Night:
|
smart dual light
|
|
Image Enhancement:
|
BLC/3D DNR/D-WDR
|
|
Human Body Detection
|
Support
|
|
Privacy Protection
|
Support(4 Self-customized Areas)
|
|

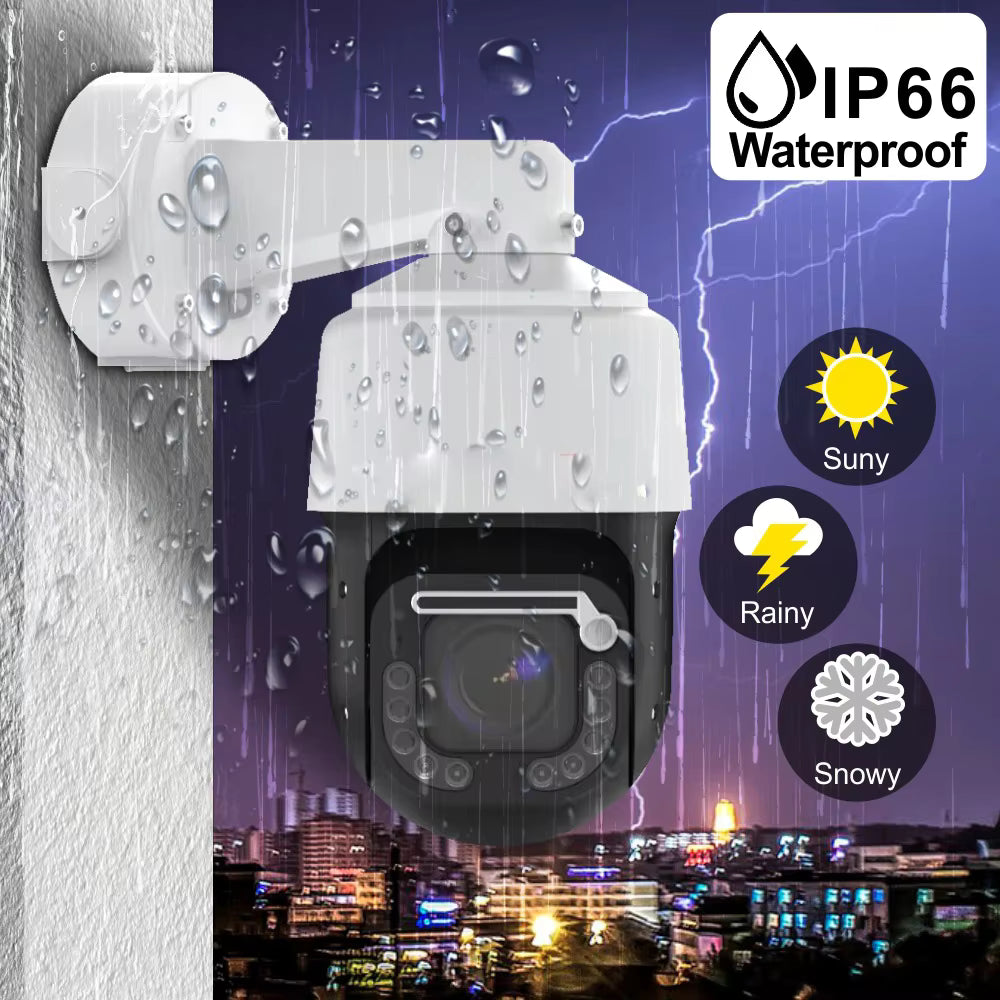

Wather-Proof:
|
IP66
|
|
Illumination for Infrared Switching:
|
1~5Lux
|
|
Infrared Wavelength:
|
850nm
|
|
Mimimum Illumination:
|
0 Lux(IR ON)
|
|
IR Range:
|
6PCS IR LEDS (100m IR) + 4PCS White Light(40m）
|
|
Compression Standard
|
|
|
Video Compression:
|
H.265/H.264
|
|
Video Bit Rate:
|
512Kbps~12288Kbps(main stream H.265)
64kbps~1024Kbps(sub stream H.265) |
|
Audio Compression:
|
G711U/G711A/AAC
|
|
Dual Streams:
|
Yes
|
|
Triple Streams:
|
Yes
|
|
|
|
|
Max. Image Resolution:
|
3840*2160@20fps(8MP)
|
|
Frame Rate:
|
8MP (3840*2160), Max 20fps.MAX main stream
1280*360, Max 20fps .MAX sub stream |
|
Image Settings:
|
3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness
adjustable via client software, web browser or Smartphone App |
|
Day/Night Switch:
|
EXT/Day/Night/Auto/Time
|
|
Audio
|
|
|
Line IN/line OUT
|
Support（1ch）
|
|
Volnume adject
|
Yes
|
|
Built-in Mic
|
Yes
|
|
Built-in Speaker
|
Yes（optional）
|
|
Network
|
|
|
Network Protocols:
|
HTTP, TCP/IP, IPv4/v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,
DDNS,IP Search(Support P2P, NVR, NVS etc.) |
|
General Function:
|
Anti-Flicker, heartbeat, password protection, privacy mask, Watermark
|
|
System Compatibility:
|
ONVIF(17.2 with profile S)
|
|
On-line Viewing
|
Max. Support 2 Users Simultaneously
|
|
WIFI function
|
Built-in（optional）
|
|
Protocol standard
|
IEEE 802.11b/g/n
|
|
Frequency Range
|
2.402GHz - 2.483Ghz
|
|
Channel bandwidth
|
20/40MHZ
|
|
Safety
|
WPA/WPA2，WPA-PSK/WPA2-PSK，WPS
|
|
Transmission distance
|
100 meters (without obstacles)
|
|
Cloud storage
|
Yes
|
|
antenna
|
external 5dB antenna (SMA socket)
|
|
Interface
|
|
|
Communication Interface:
|
1 RJ45 10M / 100M Ethernet Interface
|
|
RCA Audio Interface:
|
RCA Audio input/output Interface (Optional)
|
|
Alarm in/out interface：
|
Support（1ch） （Optional）
|
|
SD card interface
|
Support TF card（micro TF card，up to 256G）
|
|
DC Power Plug:
|
DC Power Femate Interface
|
|
General
|
|
|
Operating Conditions:
|
-10 °C ~ 60 °C
|
|
Humidity 95% or less (non-condensing)
|
|
|
Power Supply:
|
12 V DC ± 10%/PoE(Optional)
|
|
Power Consumption:
|
12 VDC ± 10%, Max Power Comsumption Less than 8W
(When the infrared lamps turn on) |
