| 1 |
System |
operating system |
Linux |
| Number of online users |
4 users watching online simultaneously |
| APP |
Domestic: Kitty Hawk Guard Overseas: HotKam |
| 2 |
Collection |
processor |
CV610 Cortex-A7 1T computing power |
| Memory |
1Gbit |
| Image Sensor |
4MP 1/3 16:9 CMOS sensor |
| Viewing Angle |
Diagonal D 125° |
| Collision Sensing |
Gsensor three-axis accelerometer, collision gravity sensor |
| 3 |
Video |
Compression Standards |
H.264 /MJPEF/JPEG |
| Proactive |

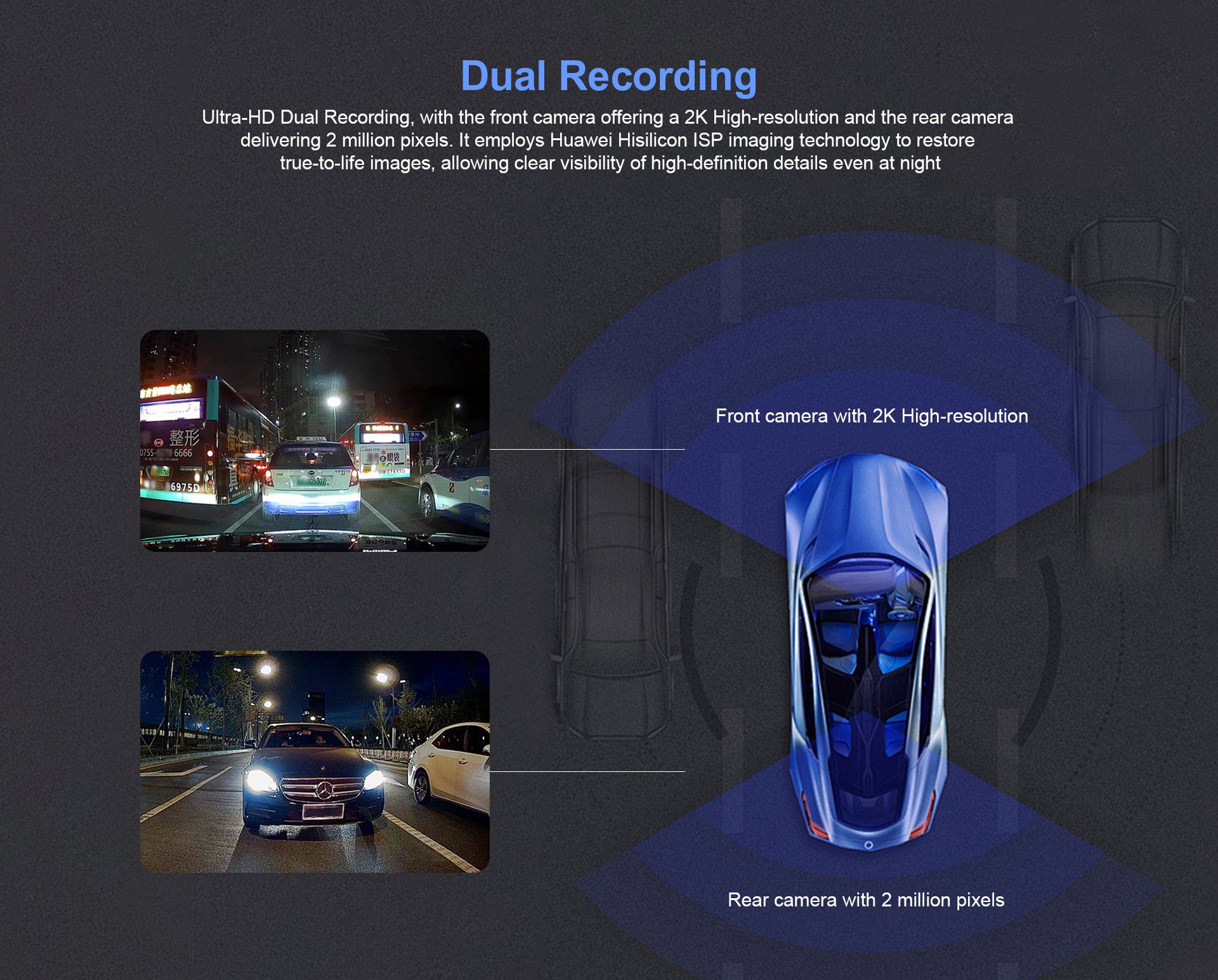

Main stream: 2560X1440P/30fps Preview sub-stream: 1280X720P/25fps 2G4P D125° 17 heads |

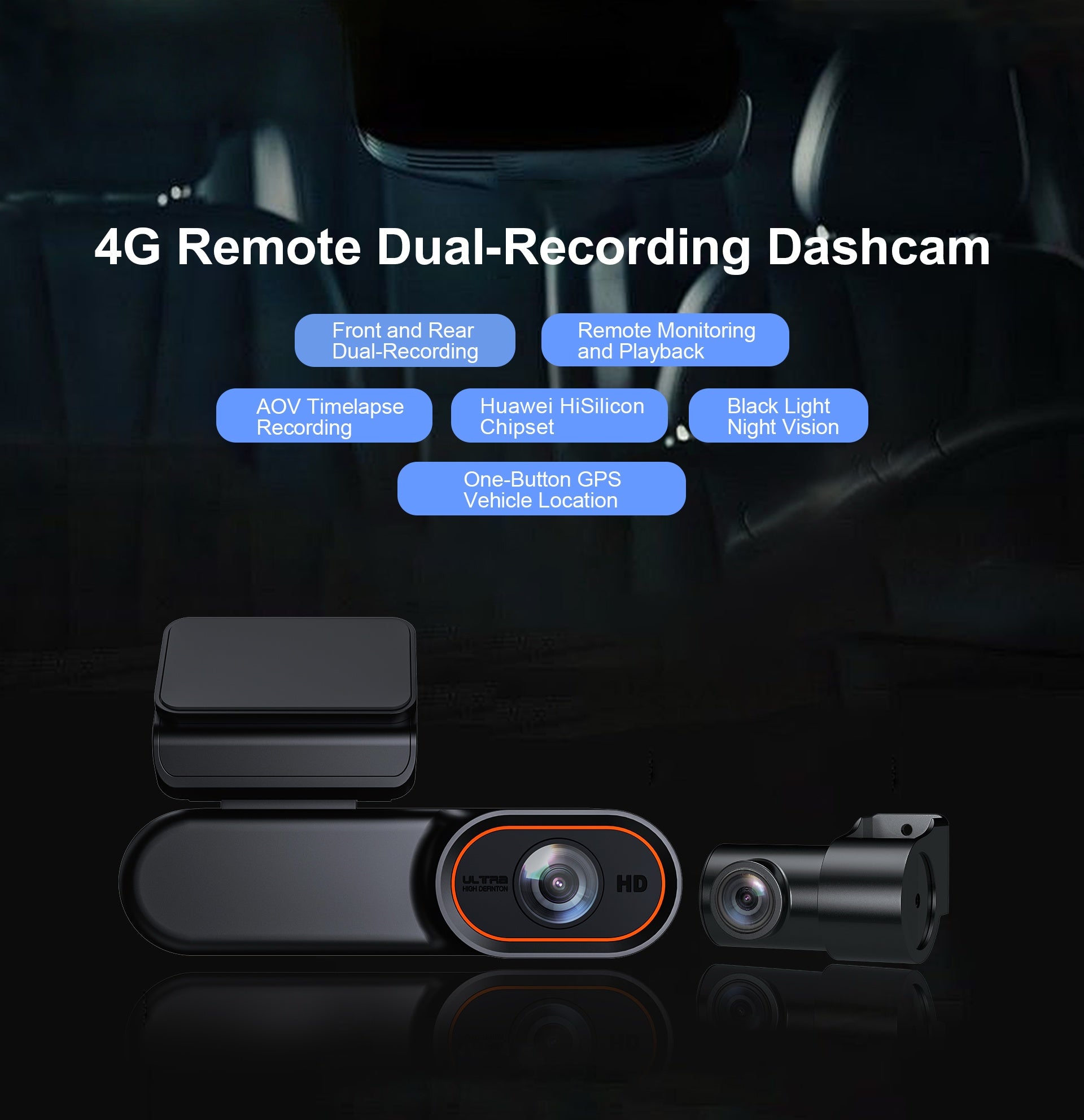

| Rear camera |
Main stream: 1920X1080P/25fps Preview sub-stream: 1280X720P/25fps AHD/2.5mm AV headphone jack Pull the camera back, the extension cable is 5.5 meters long |
| 4 |
Audio |
enter |
Built-in -38dB microphone |
| Sampling frequency/bit width |
16KHz/16bit |
| Compression standard/bit rate |
G711A |
| Alarm video |
Collision Alarm |
When the vehicle is hit/vibrated, an alarm event is pushed to the cloud, and the mobile phone APP receives the collision message |
| Human Detection |
Human detection algorithm, parking sentry mode |
| 5 |
Network |
4G Asia Pacific Network (Optional European, North American version) |
FDD:B1/B3/B5/B8 |
| TDD:B34/B38/B39/B40/B41 |
| External SIM card slot Nano 12.3mm x 8.8mm x 0.7mm |
| 6 |
Position |
GPS |

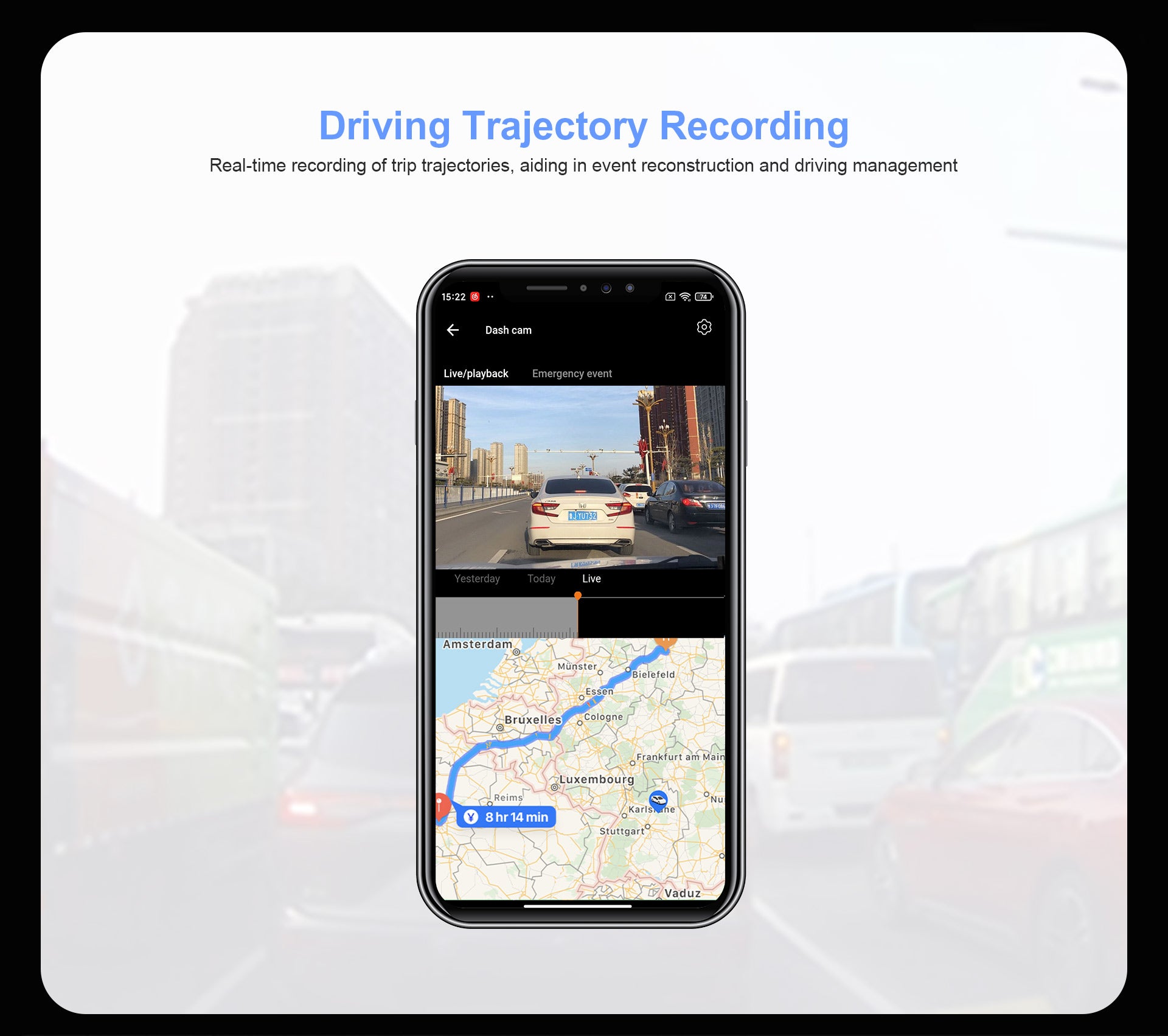

Beidou/GPS dual-mode one-click car search, electronic fence, track playback; domestic Amap; overseas Google Maps |
| 7 |
Button |
Reset button |
Long press to restore factory settings |
| Power button |
Long press to turn off / short press to lock the video of interest (10 seconds) |
| Storage |
Storage function |
Support T-Flash card (up to 256GB) |
| Cloud Storage |
1 day of free recurring cloud storage |
| 8 |
Working Mode |
Driving mode |
Vehicle start detection driving mode, high frame rate 30FPS image quality, driving sensitivity setting |
| Parking monitoring |
Vehicle parking monitoring, multiple monitoring modes to choose from: sleep collision recording, intelligent full-time recording, time-lapse recording |
| 9 |
Physical indicators |
Alarm detection |
Collision Alarm |
| power supply |
DC12V±5%@Type-C interface |
| Work Environment |
Working temperature: -10～70℃, working humidity <90% |
