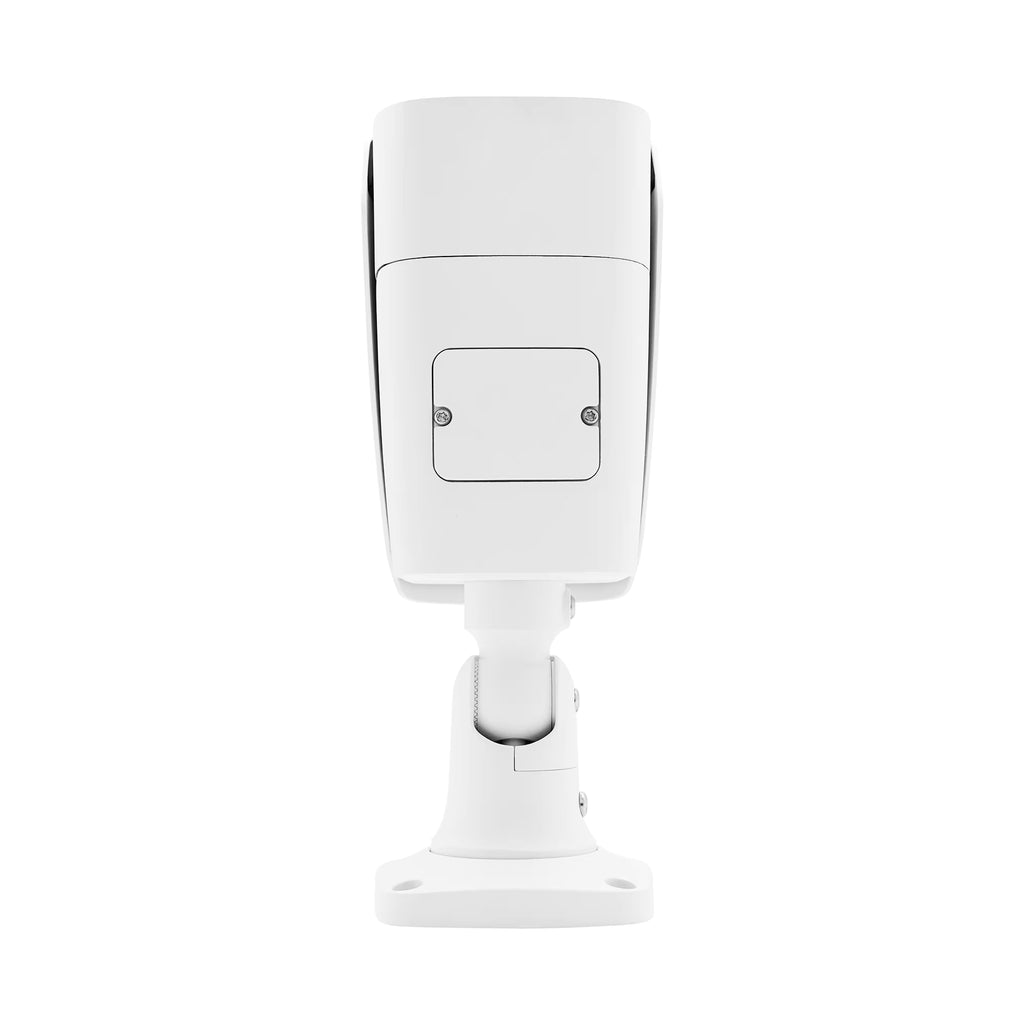

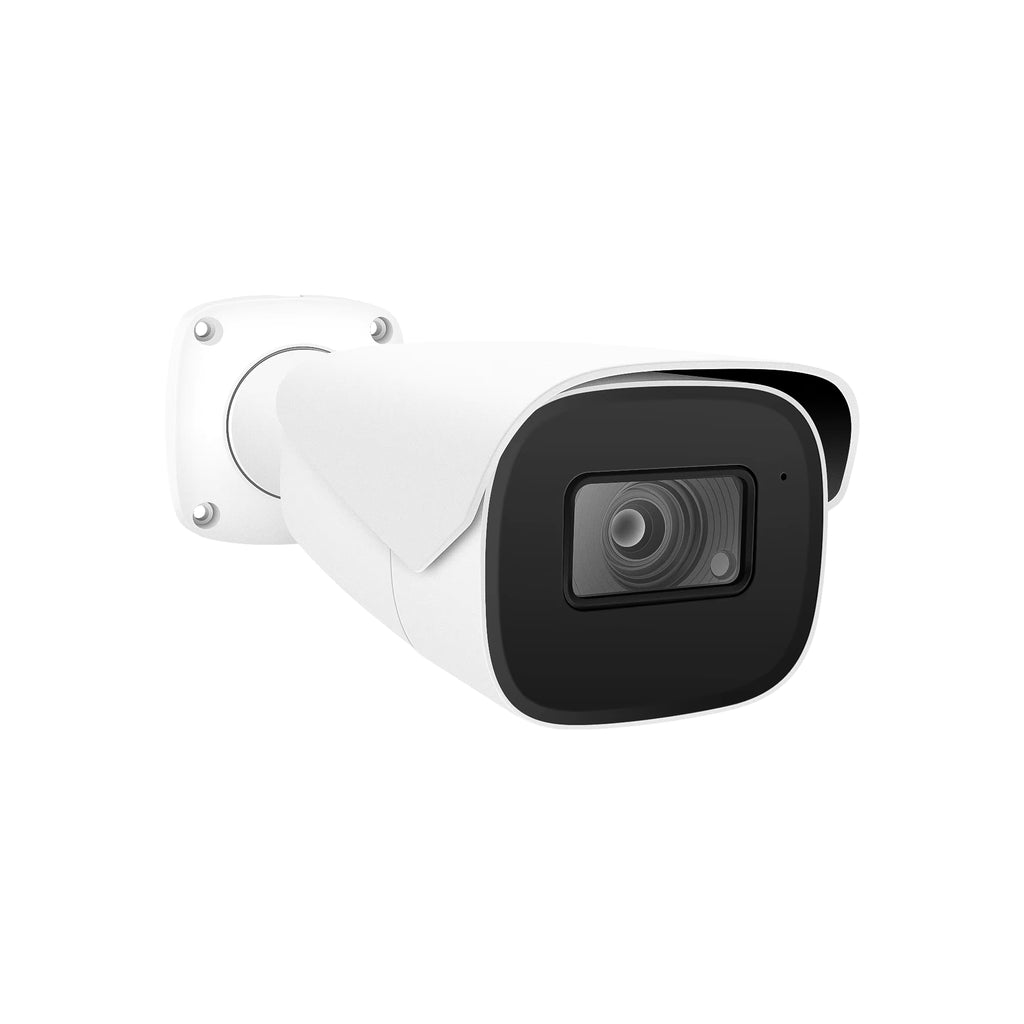

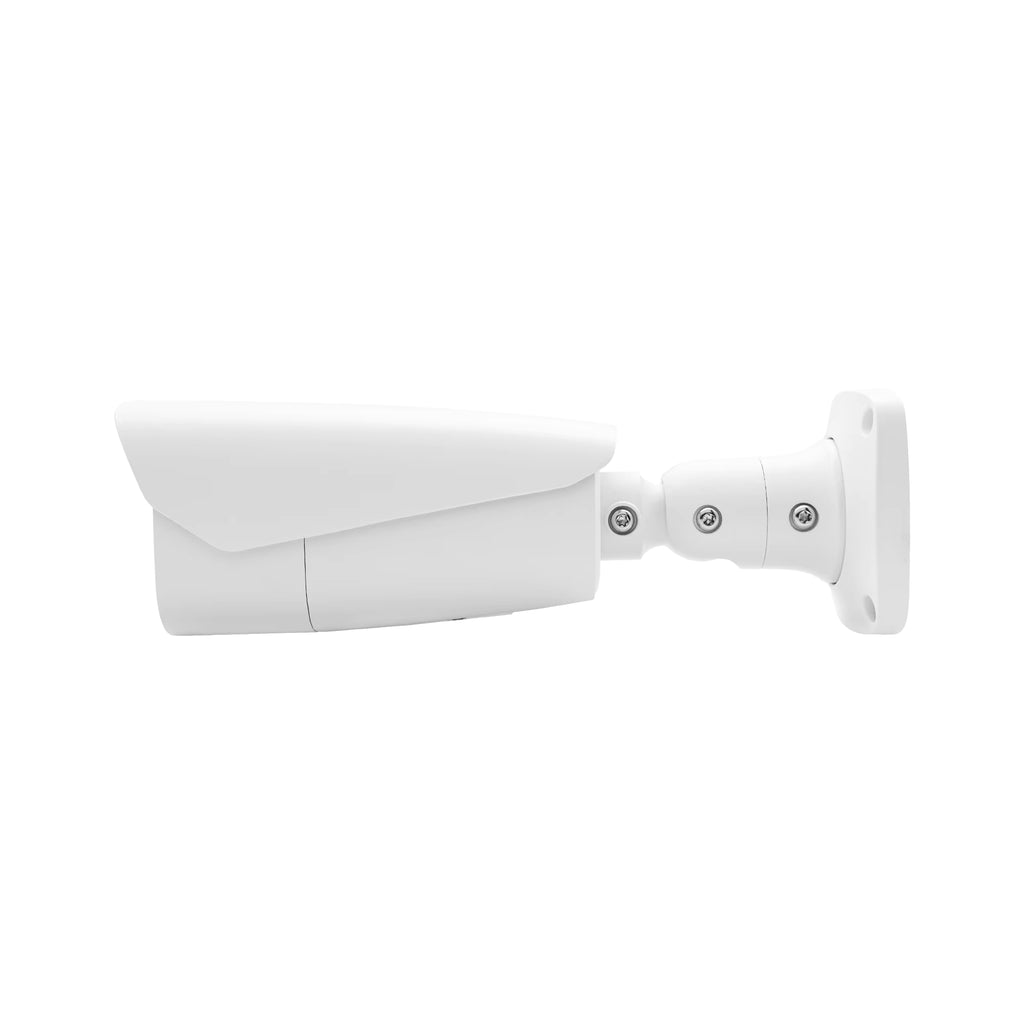

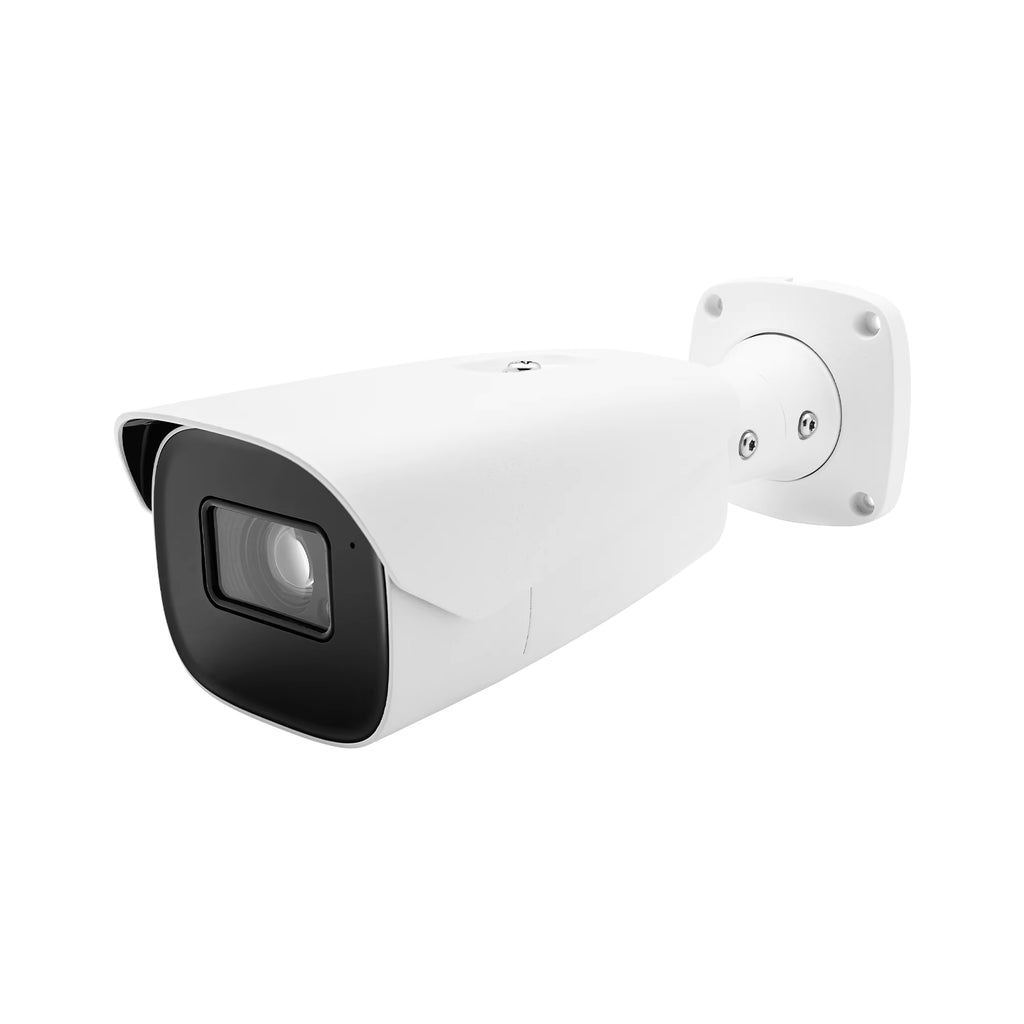

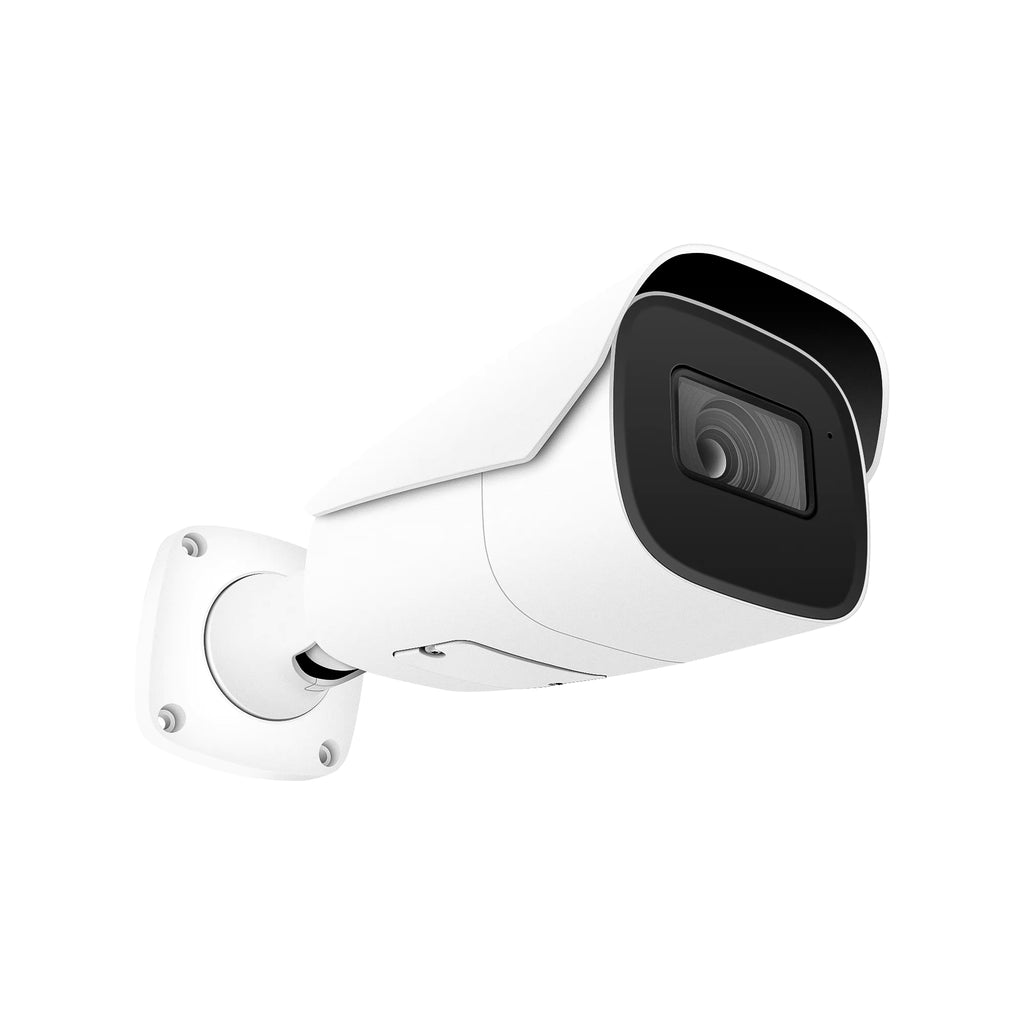

OEM 4MP ANPR LPR IP Security Vehicle Licence Plate Detection and Recognition POE Camera 50-70 IR Distance IP67 with SD Slot

Camera

Image Sensor

1 / 1.8" CMOS

Image Size

4MP ( 2560 × 1520 ) @30fps

Electronic Shutter

Manual or auto; manual: 1 / 1 s ~ 1 / 100000s

Iris Type

DC Iris

Min . Illumination

0.0007 lux@F1.3,AGC ON; 0 lux with IR 0.001 lux@F1.6, AGC ON; 0 lux with iR

Lens

2.8 ~ 12mm @F1.3, motorized

8 ~32mm @F1.6, motorized

Field of View

Horizontal:100.4°~49°; Vertical: 57°~ 29°; Diagonal: 117.5°~56°

Horizontal: 41°~15.5°; Vertical: 23°~ 9.5°; Diagonal: 46.5°~18°

Lens Mount

Integrated

Recommended ANPR Distance

3~ 8m

7~30m

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Defog

Yes

Digital NR

3D DNR

S/N Ratio

≥50dB

Angle Adjustment

Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°


Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.264 Compression Standard

Baseline Profile/Main Profile/High Profile

Resolution

4MP (2592 ×1520 ), 2K (2560 ×1440), 3MP(2304 ×1296),1080P(1920 ×1080), 720P (1280 ×720 ), D1, CIF

Main Stream

4MP/2K/3MP/1080P( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps )
HFR Mode: 1080P(60Hz: 1~60fps; 50Hz: 1~50fps)

Sub Stream

720P/D1/CIF ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps )

Third Stream

D1/CIF ( 60Hz :1 ~ 30fps; 50Hz : 1 ~ 25fps )

Bit Rate

64 Kbps ~ 8 Mbps

Bit Rate Type

VBR / CBR

Audio Compression

G711A / U

Image Settings

ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR,etc . adjustable through client software or web browser

ROI

Each ROI to be configured separately

Interfaces

Network

RJ 45 10M/100M self-adaptive Ethernet port

Video Output

CVBS output (BNC× 1)

Audio

1CH audio input; 1CH audio output

Storage

Built-in micro SD card slot; up to 256GB

Reset

Yes

Alarm

1CH alarm input; 1CH alarm output

RS 485

Yes

Wiegand

Yes (26bit)

Functions

Remote Monitoring

Web Browser/NVMS2.0/NVR/mobile APP

Web Browser

IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Online Connection

Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, HTTP POST,802.1x, UPnP, HTTPs, QoS

Interface Protocol

ONVIF

Storage

Network remote storage; micro SD card storage

Smart Alarm

Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection

Intelligent Analytics

License plate recognition, video exception detection

Security

Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/HTTPs

General Function

Watermark, video mask, heartbeat, corridor mode

PoE

Yes , IEEE802.3af

IR Distance

50~70m

70~100m

Protection Grade

IP67

LPR

Snapshot

Original image (4MP resolution) and license plate image

Vehicle Plate Database

10,000

License Plate Detection & Recognition

Capture of vehicles with license plates and vehicles without license plate, Support plate exposure, travel direction recognition, plate character fault tolerance, plate comparison, snapshot time display Vehicle feature extraction: including vehicle color, plate color, vehicle type, vehicle brand/model, production year, etc .

Capture Speed Range

0~120km/h

Others

Power Supply

DC12V/AC24V/PoE

Power Consumption

< 12W

Operating Environment

- 30 °C ~ 60 °C (-22°F~140°F); Humidity: less than 95 % (non-condensing)

Storage Environment

- 30 °C ~ 65 °C (-22°F~149°F); Humidity: less than 95 % (non-condensing)

Dimensions ( mm )

278.3 × 100.2 × 88.7

Weight ( net )

Approx . 1.176KG

Installation

Ceiling mounting; Wall mounting

Certificate

CE, FCC

Environmental Protection

Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
