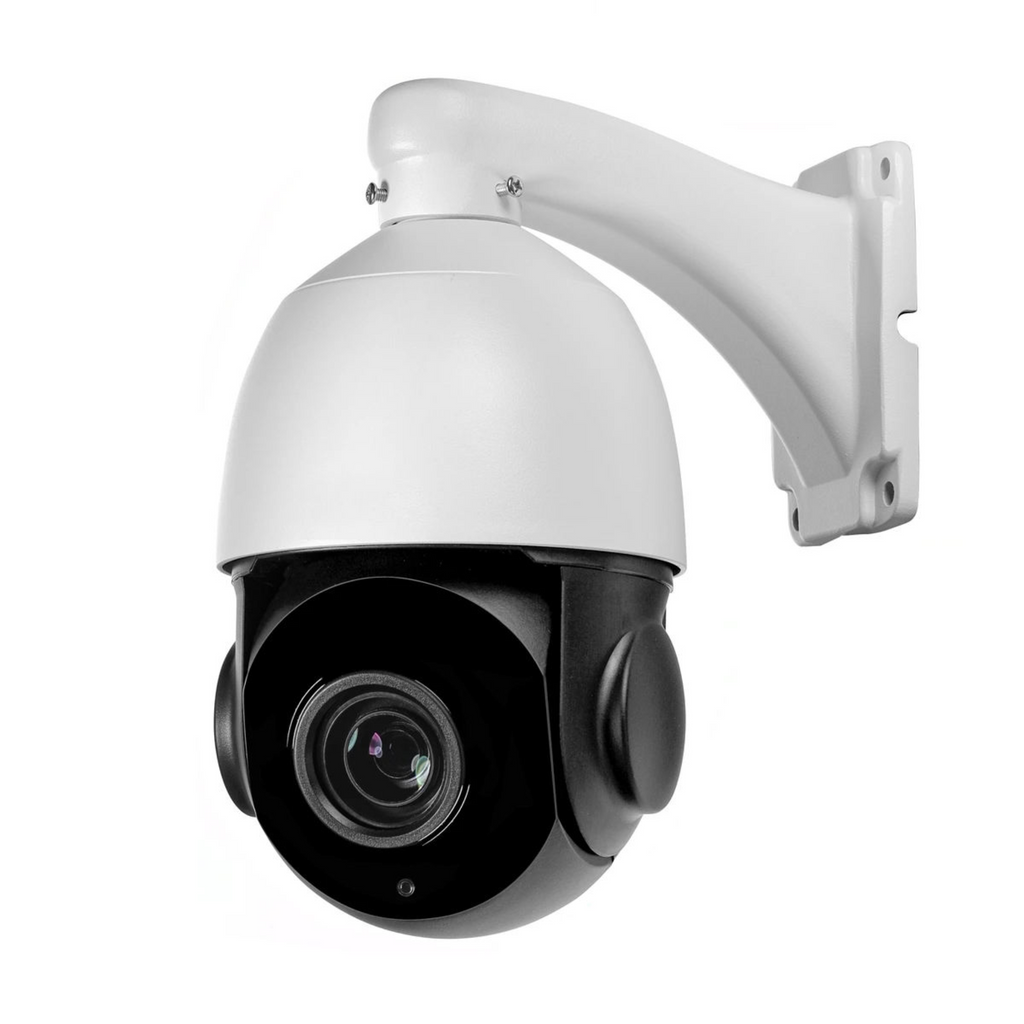

OEM Full HD IP PTZ CCTV Camera System 4K 8 Megapixel 20X Zoom Dome Style Night Vision NVR Data Audio Video-HIK Protocol POE
$130.00
Skip to product information
OEM Full HD IP PTZ CCTV Camera System 4K 8 Megapixel 20X Zoom Dome Style Night Vision NVR Data Audio Video-HIK Protocol POE
$130.00
Feature:
* 1/2.8" Sony415 CMOS sensor
* 4K resolution 3840 x 2160P
* Low illumination 0.01Lux
* Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
* D-WDR, Mirror, rotate, Defogging
* Multiply Style OSD Overlay, Motion Detection, Privacy Mask
* RTSP and On-vif 17.06 compatible with many third-party NVR
* 264/H.265 dual-stream media server
* Easy-to-use P2P Cloud service
* Support user authentication, video data encryption
* Support Alarm Snapshot to Email and FTP
* Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
* RJ45 100mbps network port, IEEE802.3af PoE
* Lightning protection 4000V

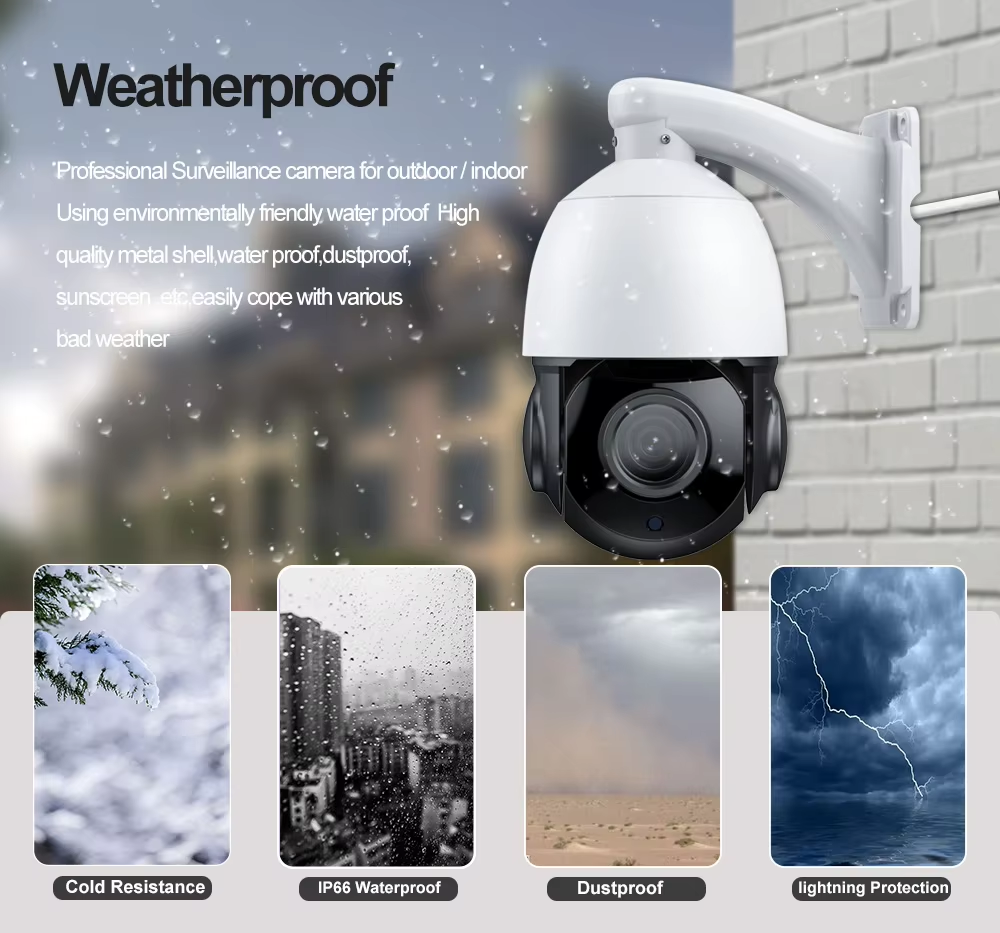

* Strong water-proof housing, IP66
* 6pcs SMD Leds, IR distance 30-40 meters * HD 3.6mm motorized lens
* 4K resolution 3840 x 2160P
* Low illumination 0.01Lux
* Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR, Shutter, IR-CUT
* D-WDR, Mirror, rotate, Defogging
* Multiply Style OSD Overlay, Motion Detection, Privacy Mask
* RTSP and On-vif 17.06 compatible with many third-party NVR
* 264/H.265 dual-stream media server
* Easy-to-use P2P Cloud service
* Support user authentication, video data encryption
* Support Alarm Snapshot to Email and FTP
* Multiply WEB browser IE, Firefox 32bit ESR, PC Client, Mobile APP remote access
* RJ45 100mbps network port, IEEE802.3af PoE
* Lightning protection 4000V
* Strong water-proof housing, IP66
* 6pcs SMD Leds, IR distance 30-40 meters * HD 3.6mm motorized lens
Specification
|
Model
|
Model E |
|
Camera
|
|
|
Image Sensor
|
1/2.8" Sony415 CMOS
|
|
Effective Pixels
|
8 megapixels
|
|
Electronic Shutter
|
AUTO, 1/25s ~ 1/100000s
|
|
Min. Illumination
|
0.01Lux@F1.2(AGC ON), 0Lux IR on
|
|
Day/Night
|
Auto/Color/(B/W)/Timing
|
|
WDR
|
Digital WDR
|
|
White Balance
|
Auto/Manual
|
|
BLC /HLC
|
Support
|
|
DNR
|
2D/3D DNR
|
|
Other
|
AGC,Motion Detection,Privacy Mask,Flip ,OSD overlay
|
|
Encode
|
|
|
Video Standard
|
H.264/H.265
|
|
Video Resolution
|
Main Stream:30fps@8MP(3840x2160)/6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc.
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. Third stream:1080P/720P/CIF@10fps |
|
Video Bitrates
|
512Kbps - 12Mbps, VBR/CBR
|
|
Audio Standard
|
G.711-u/G.711-a
|
|
Built-in Mic
|
Yes
|
|
Built-in Speaker
|
No
|
|
OSD Overlay
|
Title and Time overlay
|
|
IR Led
|
|
|
IR Led
|
20pcs SMD Leds
|
|
IR Distance
|
30-40 M
|
|
Lens
|
|
|
Focal length
|
2.7-13.5 mm motorized lens
|
|
Network Services
|
|
|
Protocol
|
HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc.
|
|
P2P
|
Yes
|
|
Web
|
IE , Firefox (32bit esr), etc.
|
|
Media
|
CMS, Android, IOS
|
|
ON-VIF
|
17.06 compatible
|
|
General
|
|
|
Network Port
|
1-RJ45, 100Mbps, POE optional
|
|
Power Supply
|
12 VDC ± 10%
|
|
Power Consumption
|
< 8 W
|
|
Operating Temp.
|
-30℃-(+60)℃, 10%-90%RH
|
